3PDT Keylock Switch with maintained and momentary action, featuring a 90° index angle and flat key. This panel mount switch offers solder lug termination with silver contacts and silver plating, rated for 2.5A at 125VAC/125VDC. It provides a 2-position, non-shorting operation with an electrical life of 15,000 cycles. Operating temperature range is -30°C to 85°C.
Current Rating2.5A
MountingPanel
Quick Jump:
Technical Specifications
ITT A3141U2A1NZRQ technical specifications.
General
Contact Material
Silver
Contact Plating
Silver
Contact Style
Non-Shorting
Current Rating
2.5A
Depth
26.19mm
Electrical Life
15000Cycles
Index Angle
90°
Length
26.19mm
Max Current Rating
2.5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Panel
Number of Positions
2
Orientation
Straight
Package Quantity
1
RoHS Compliant
Yes
Series
A
Switch Function
On-On
Termination
Solder
Throw Configuration
3PDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT A3141U2A1NZRQ Datasheet
Download the complete datasheet for ITT A3141U2A1NZRQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

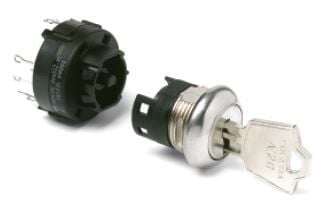

Product Images
