Illuminated pushbutton switch featuring a straight, panel-mount orientation with a black polycarbonate actuator. SPST-NO throw configuration offers 0.125A at 125V AC and 24V DC ratings, with a maximum current of 400mA. Contact material is copper alloy with gold and silver plating, providing an electrical and mechanical life of 1,000,000 cycles. Rated IP67 for waterproof and dust-tight operation, this RoHS compliant component operates within a temperature range of -40°C to 105°C.
Current Rating400mA
MountingSnap in, Panel
Quick Jump:
Technical Specifications
ITT AP2D200SZBE technical specifications.
General
Actuator Color
Black
Actuator Length
3.54mm
Actuator Material
Polycarbonate
Contact Material
Copper Alloy
Contact Plating
Gold, Silver
Current Rating
400mA
Depth
17.4mm
Electrical Life
1000000Cycles
Length
17.4mm
Max Current Rating
400mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
50V
Mechanical Life
1000000Cycles
Mount
Snap in, Panel
Orientation
Straight
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AP
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
ITT AP2D200SZBE Datasheet
Download the complete datasheet for ITT AP2D200SZBE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

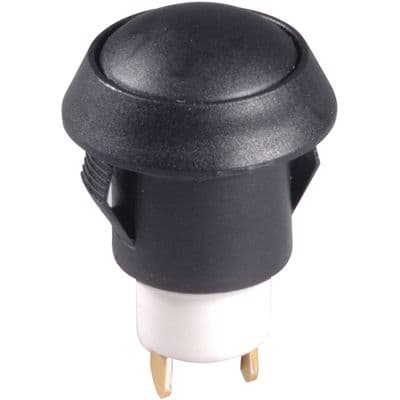

Product Images
