Illuminated pushbutton switch featuring a grey, round button actuator with a 7mm length. This SPST-NO (Single Pole Single Throw, Normally Open) switch offers a 100mA contact current rating and a maximum DC voltage rating of 32V. Designed for through-hole mounting with PC pin termination and a 5mm terminal pitch, it boasts an electrical life of 250,000 cycles and an operating force of 1.3N. Operating within a temperature range of -20°C to 85°C, this component is packaged in trays of 250 units.
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT D6R10F1LFS technical specifications.
General
Actuator Color
Grey
Actuator Length
7mm
Actuator Type
Round, Button
Color
Grey
Contact Current Rating
100mA
Contact Plating
Silver
Current Rating
100mA
Diameter
12mm
Electrical Life
250000Cycles
Height
14.3mm
Lead Free
Lead Free
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
32V
Mount
Through Hole
Number of Positions
2
Operating Force
1.3N
Orientation
Straight
Package Quantity
250
Packaging
Tray
RoHS Compliant
No
Row Spacing
5mm
Series
D6
Switch Function
Off-Mom
Terminal Pitch
5mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
32V
Compliance
RoHS
Not Compliant
Datasheet
ITT D6R10F1LFS Datasheet
Download the complete datasheet for ITT D6R10F1LFS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

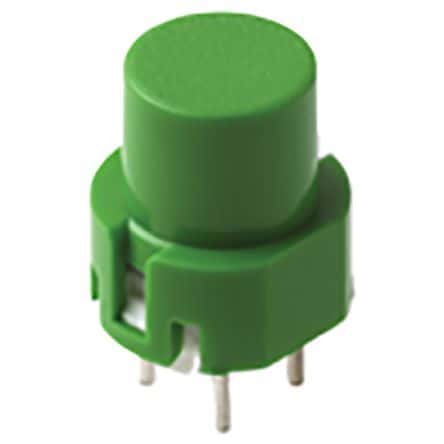

Product Images
