Illuminated rocker switch featuring a DPST (Double Pole Single Throw) configuration for On-Off functionality. Rated for 3A at 125VAC, with a maximum AC voltage rating of 250V. This panel-mount switch offers quick connect termination and a straight orientation, with a black nylon actuator and housing. It includes green LED illumination and boasts an electrical life of 10,000 cycles, operating within a temperature range of -20°C to 85°C.
Current Rating3A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
ITT DM24J72S205Q6 technical specifications.
General
Actuator Color
Black
Actuator Material
Nylon
Actuator Type
Rocker
Color
Black
Contact Material
Copper
Contact Plating
Silver
Current Rating
3A
Depth
15mm
Electrical Life
10000Cycles
Housing Color
Black
Illumination Color
Green
Illumination Type
Illuminated, LED
Lead Free
Lead Free
Length
20.83mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Orientation
Straight
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
DM
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
ITT DM24J72S205Q6 Datasheet
Download the complete datasheet for ITT DM24J72S205Q6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

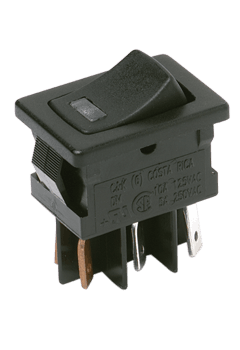

Product Images
