SPST-NO tactile switch with a 100mA contact current rating and 100V DC rated voltage. Features silver-plated bronze contacts, 0.3mm switch travel, and a 2.4N operating force. Offers 1,000,000 electrical and mechanical life cycles. Surface mount and through-hole termination options are available. IP67 rated for waterproof and dust-tight applications.
Current Rating50mA
MountingSurface Mount, Through Hole
Quick Jump:
Technical Specifications
ITT EDSSC1LFS technical specifications.
General
Actuator Length
0mm
Color
Silver
Contact Current Rating
100mA
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
1000000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Current Rating
100mA
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
100V
Mount
Surface Mount, Through Hole
Operating Force
2.4N
Orientation
Straight
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
ED
Switch Function
Off-Mom
Switch Travel
0.3mm
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
ITT EDSSC1LFS Datasheet
Download the complete datasheet for ITT EDSSC1LFS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

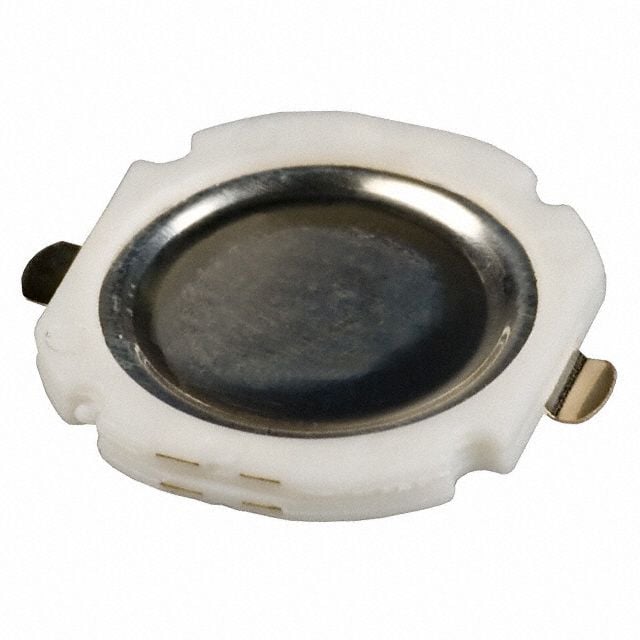

Product Images
