SPDT Keylock Switch with maintained and momentary action, featuring silver-plated copper contacts for reliable switching. Rated for 12A at 250VAC and 125VDC, this panel-mount switch offers a 90° index angle and two positions with an On-On function. It operates within a temperature range of -30°C to 85°C and provides a 125VDC rated voltage, with wire lead termination.
MountingPanel
Quick Jump:
Technical Specifications
ITT H101132F2WCNQ technical specifications.
General
Contact Material
Copper
Contact Plating
Silver
Depth
22.35mm
Electrical Life
10000Cycles
Index Angle
90°
Length
22.35mm
Max Current Rating
12A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Panel
Number of Positions
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
H
Switch Function
On-On
Termination
Wire Leads
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT H101132F2WCNQ Datasheet
Download the complete datasheet for ITT H101132F2WCNQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

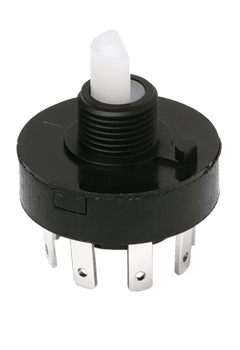

Product Images
