DPDT Rotary Switch with solder lug termination, featuring a 45° index angle and fixed index stops. This switch offers a 1A continuous current rating and a maximum current rating of 12A, with a voltage rating of 250VAC and 125VDC. It boasts an electrical life of 10,000 cycles and operates within a temperature range of -30°C to 95°C. The switch includes a 7.29mm nylon flatted shaft and is RoHS compliant.
Voltage Rating250V
Current Rating1A
MountingSolder, Panel
Quick Jump:
Technical Specifications
ITT H20207RR01Q technical specifications.
General
Actuator Length
7.29mm
Actuator Material
Nylon
Contact Material
Copper
Contact Plating
Silver
Contact Style
Shorting
Current Rating
1A
Depth
23.62mm
Electrical Life
10000Cycles
Index Angle
45°
Index Stops
Fixed
Length
23.62mm
Max Current Rating
12A
Max Operating Temperature
95°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Solder, Panel
Number of Decks
1
Number of Poles per Deck
2
Number of Positions
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
H
Termination
Lug
Throw Configuration
DPDT
Voltage Rating
250V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT H20207RR01Q Datasheet
Download the complete datasheet for ITT H20207RR01Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

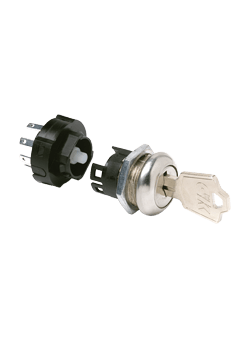

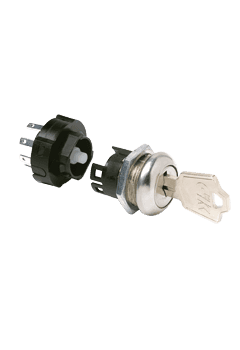

Product Images
