Technical Specifications
ITT JSX08001SAQNL technical specifications.
General
| Actuator Length | 1.65mm |
| Actuator Material | Nylon, Polyamide, PA46 |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Contact Material | Copper |
| Contact Plating | Silver |
| Electrical Life | 100000Cycles |
| Flammability Rating | UL94 V-2 |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Orientation | Right Angle |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | JSX |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| DC Rated Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
ITT JSX08001SAQNL Datasheet
Download the complete datasheet for ITT JSX08001SAQNL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

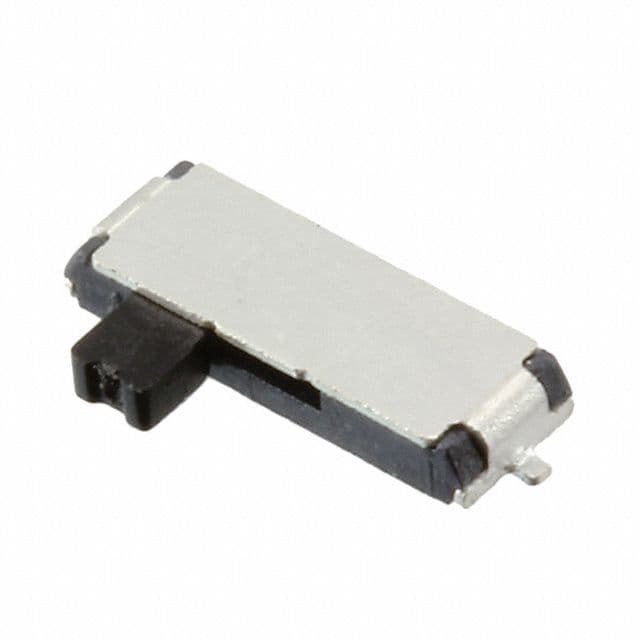

Product Images
