Illuminated pushbutton switch featuring a black, round button actuator with 2mm length and 1mm travel. This SPST, Off-Mom switch offers a 2.5N operating force, 100mA current rating, and 30V DC voltage rating. Designed for through-hole mounting with PC pin termination and a 2.6mm terminal pitch, it boasts an electrical life of 1,000,000 cycles and IP40 protection. Operating within a -40°C to 85°C temperature range, this RoHS compliant component is supplied in bulk packaging.
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT K12ABK12.5N technical specifications.
General
Actuator Color
Black
Actuator Length
2mm
Actuator Type
Round, Button
Current Rating
100mA
Electrical Life
1000000Cycles
Illumination Type
Illuminated
Lead Free
Lead Free
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
30V
Mount
Through Hole
Operating Force
2.5N
Orientation
Straight
Package Quantity
300
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.2mm
Series
K12
Switch Function
Off-Mom
Terminal Pitch
2.6mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
ITT K12ABK12.5N Datasheet
Download the complete datasheet for ITT K12ABK12.5N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

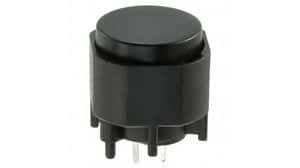

Product Images
