SPST-NO tactile switch, surface mount (SMD/SMT) with gull wing termination. Features a 32V DC rating and 50mA current rating, with a mechanical life of 150,000 cycles. Offers a 1N operating force and 0.13mm switch travel. Non-illuminated with a standard actuator, contact material and plating are silver. Operates within a temperature range of -40°C to 85°C.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT KMT211NGHFLFS technical specifications.
General
Actuator Length
0.19mm
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Depth
3.4mm
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
2.6mm
Max Current Rating
50mA
Max Operating Temperature
85°C
Max Voltage Rating (DC)
32V
Mechanical Life
150000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Force
1N
Orientation
Straight
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
KMT
Switch Function
Off-Mom
Switch Travel
0.13mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
32V
Compliance
RoHS
Compliant
Datasheet
ITT KMT211NGHFLFS Datasheet
Download the complete datasheet for ITT KMT211NGHFLFS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

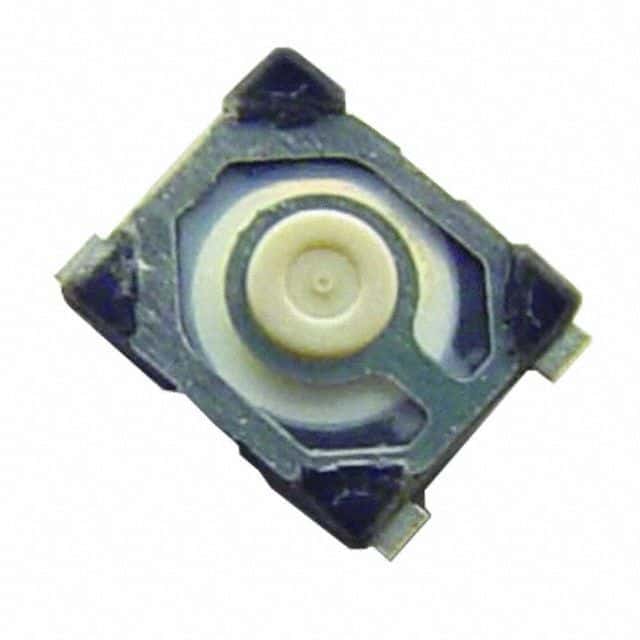

Product Images
