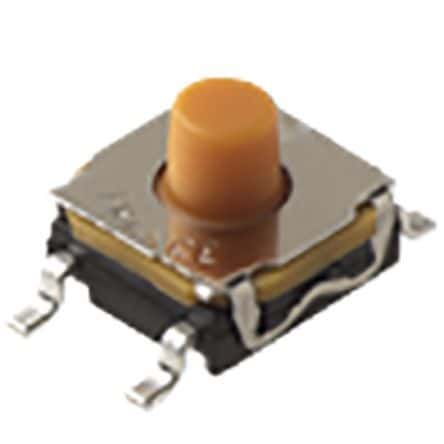

SPST-NO tactile switch with a 32V DC voltage rating and 50mA current rating. Features a standard actuator with 2.6mm length, 0.35mm travel, and 1.4N operating force. Constructed with silver contacts and plating, it offers a mechanical life of 1,000,000 cycles. This surface mount, sealed component is IP67 rated for waterproof and dust-tight applications, operating between -40°C and 85°C. Termination is J-Bend, and it is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT KSC411J70SHLFS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 2.6mm |
| Actuator Type | Standard |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 6.8mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 32V |
| Mount | Surface Mount, Sealed |
| Operating Force | 1.4N |
| Orientation | Straight |
| Package Quantity | 1000 |

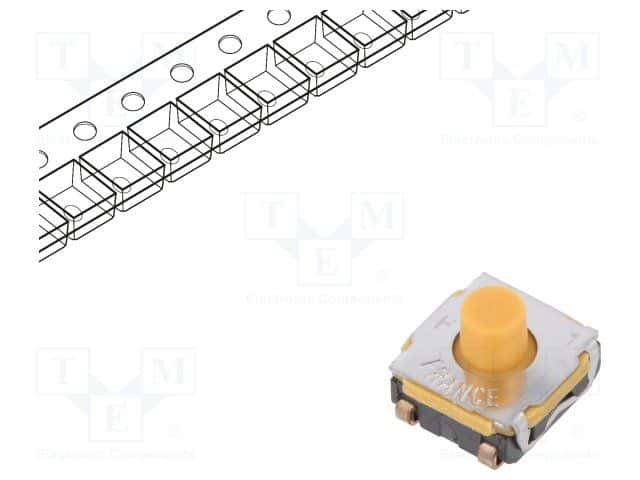

| Packaging | Tape and Reel |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | KSC |
| Size | 6.2mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.35mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 32V |
| RoHS | Compliant |
