SPST-NO tactile switch, rated for 32V DC and 0.05A, featuring a standard, non-illuminated actuator. Offers a 350gf operating force and 0.7mm travel, with a mechanical life of 300,000 cycles. Designed for through-hole mounting with SMD/SMT termination, this switch operates within a -40°C to 85°C temperature range. IP67 rated for waterproof and dust-tight performance, it is lead-free and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT KSC441V2SPDLFS technical specifications.
General
Actuator Type
Standard
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
85°C
Mechanical Life
300000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
32V
Mount
Through Hole
Operating Force
350gf
Packaging
Cut Tape
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
KSC4V2
Switch Function
Off-Mom
Switch Travel
0.7mm
Termination
SMD/SMT
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
ITT KSC441V2SPDLFS Datasheet
Download the complete datasheet for ITT KSC441V2SPDLFS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

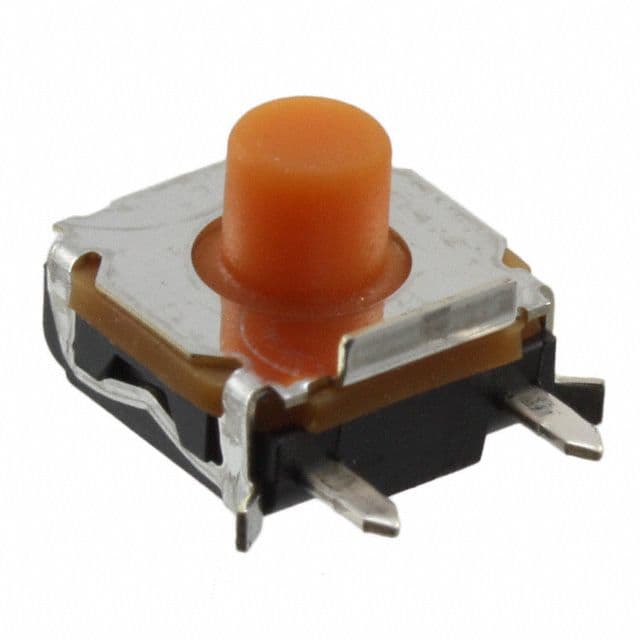

Product Images
