SPST slide switch featuring a 4A current rating and 125VAC voltage rating. This non-illuminated, vertical mount switch offers a 3.81mm travel and is constructed with silver-plated copper contacts. Designed for through-hole mounting with PC pin termination, it operates within a temperature range of -30°C to 65°C and boasts an electrical life of 10,000 cycles. The black nylon actuator measures 1.65mm in length, and the component is RoHS compliant and lead-free.
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT L101121MS02Q technical specifications.
General
Actuator Color
Black
Actuator Length
1.65mm
Actuator Material
Nylon, Polyamide, PA66
Contact Current Rating
4A
Contact Material
Copper
Contact Plating
Silver
Current Rating
4A
Electrical Life
10000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
L
Switch Function
On-Off
Switch Travel
3.81mm
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
ITT L101121MS02Q Datasheet
Download the complete datasheet for ITT L101121MS02Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

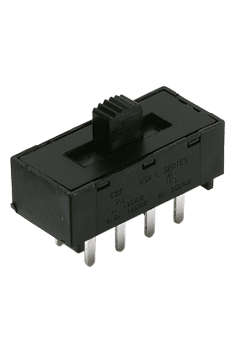

Product Images
