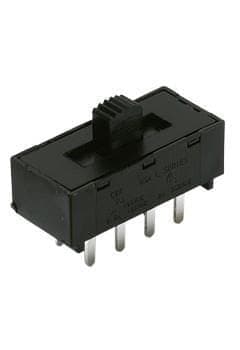

SP3T slide switch featuring PC pin termination for through-hole mounting. Rated for 4A at 250VAC and 125VDC, with a DC rated voltage of 28V. Offers a 10,000 cycle electrical life and operates within a temperature range of -30°C to 65°C. Constructed with silver-plated copper contacts and a black nylon actuator.
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT L103011MS02Q technical specifications.
General
Actuator Color
Black
Actuator Length
5.08mm
Actuator Material
Nylon, Polyamide, PA66
Actuator Type
Standard
Contact Material
Copper, Silver
Contact Plating
Silver
Current Rating
4A
Depth
10.8mm
Electrical Life
10000Cycles
Lead Free
Lead Free
Length
23.9mm
Max Current Rating
4A
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
L
Switch Function
On-On-On
Switch Travel
4.06mm
Termination
PC Pins
Throw Configuration
SP3T
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
