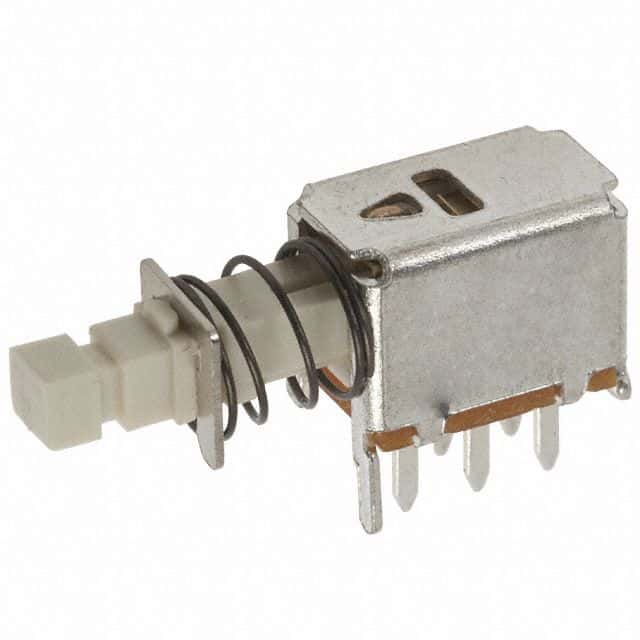

Illuminated pushbutton switch featuring DPDT (Double Pole, Double Throw) configuration with a 200mA contact current rating and a 30V DC voltage rating. This through-hole mount switch offers a right-angle orientation and PC pin termination. It boasts an electrical and mechanical life of 10,000 cycles, with an operating temperature range of -10°C to 60°C. The actuator is constructed from polyacetal with a length of 5.5mm, and contacts are silver-plated bronze.
Current Rating200mA
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT PN22LENA03QE technical specifications.
General
Actuator Length
5.5mm
Actuator Material
Polyacetal
Contact Current Rating
200mA
Contact Material
Bronze
Contact Plating
Silver
Current Rating
200mA
Depth
25mm
Electrical Life
10000Cycles
Illumination Type
Illuminated
Lead Free
Lead Free
Length
7.2mm
Max Current Rating
200mA
Max Operating Temperature
60°C
Mechanical Life
10000Cycles
Min Operating Temperature
-10°C
Max Voltage Rating (DC)
30V
Mount
Through Hole
Number of Positions
2
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PN
Switch Function
On-On
Termination
PC Pins
Throw Configuration
DPDT
DC Rated Voltage
30V
Compliance
RoHS
Compliant
