SPST-NO tactile switch with a 50mA current rating and 12V DC voltage rating. Features a standard nylon actuator and silver-plated bronze contacts. Through-hole mounting with PC pin termination. Operating force is 2.55N, with a mechanical life of 100,000 cycles. Operating temperature range is -20°C to 60°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT PTS645SK95-2LFS technical specifications.
General
Actuator Material
Nylon, Polyamide, PA66
Actuator Type
Standard
Color
Red
Contact Material
Bronze
Contact Plating
Silver
Current Rating
50mA
Depth
7.9mm
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Mount
Through Hole
Operating Force
2.55N
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
RoHS Compliant
Yes
Series
PTS645
Switch Function
Off-Mom
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
ITT PTS645SK95-2LFS Datasheet
Download the complete datasheet for ITT PTS645SK95-2LFS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

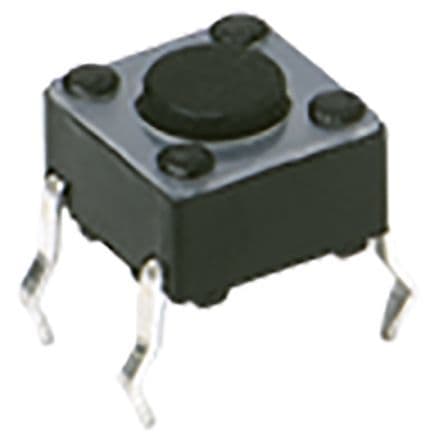

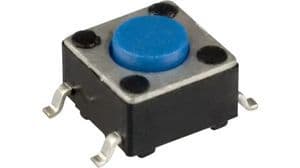

Product Images
