Technical Specifications
ITT PTS840GKPSMTRLFS technical specifications.
General
| Package/Case | SMD/SMT |
| Color | White |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Height | 1.35mm |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 220gf |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | PTS840 |
| Switch Function | Off-Mom |
| Switch Travel | 0.2mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
ITT PTS840GKPSMTRLFS Datasheet
Download the complete datasheet for ITT PTS840GKPSMTRLFS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

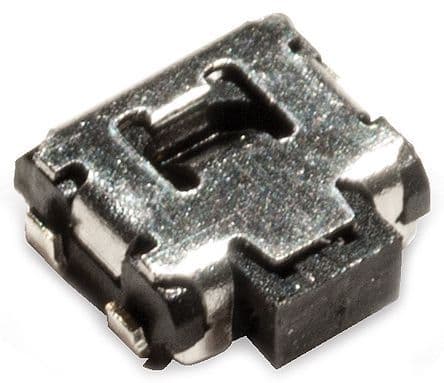

Product Images
