10-position SPST slide DIP switch with gold-plated copper contacts, rated for 24V DC and 100mA. Features a 1mm polyamide slide actuator and surface mount gull wing termination with a 2.54mm terminal pitch. Constructed with a polyphenylene body, this RoHS compliant component offers a mechanical and electrical life of 1000 cycles, operating between -40°C and 85°C.
PackageDIP
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT SDA10H1SBD technical specifications.
General
Actuator Length
1mm
Actuator Material
Polyamide
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Package/Case
DIP
Contact Material
Copper
Contact Plating
Gold
Current Rating
100mA
Depth
9.3mm
Electrical Life
1000Cycles
Lead Free
Lead Free
Length
27.34mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Mechanical Life
1000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Surface Mount
Number of Positions
10
Orientation
Straight
Package Quantity
15
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
SDA
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
ITT SDA10H1SBD Datasheet
Download the complete datasheet for ITT SDA10H1SBD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

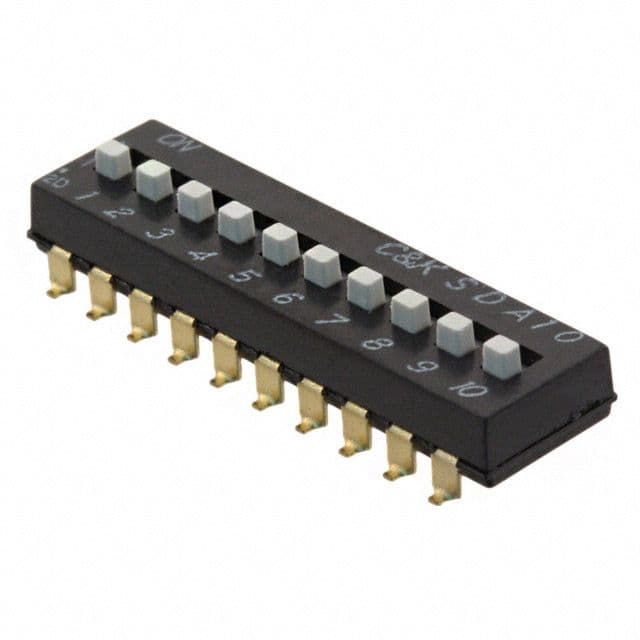

Product Images
