Technical Specifications
ITT SK12F17G7 technical specifications.
General
Actuator Length
7mm
Actuator Material
PBT, Polybutylene
Actuator Type
Standard
Contact Current Rating
300mA
Contact Material
Copper
Contact Plating
Silver
Current Rating
300mA
Electrical Life
10000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
250gf
Packaging
Bulk
Series
SK, COMAX
Switch Function
On-On
Switch Travel
3mm
Termination
PC Pin
Throw Configuration
SPDT
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
ITT SK12F17G7 Datasheet
Download the complete datasheet for ITT SK12F17G7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

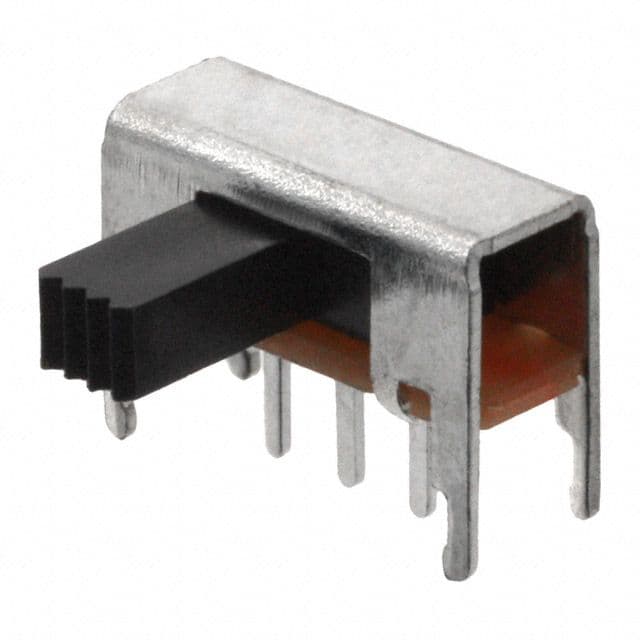

Product Images
