SPST Slide DIP Switch, featuring a surface mount gull wing termination and gold-plated copper alloy contacts. This washable component offers 1 circuit and 1 position, with a DC rated voltage of 24V and a current rating of 25mA. It boasts an electrical and mechanical life of 1000 cycles, operating within a temperature range of -40°C to 85°C. The polyphenylene body is housed in a DIP package, supplied in tape and reel packaging with 2500 units per reel.
PackageDIP
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT TDA01H0SB1R technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Package/Case
DIP
Contact Material
Copper Alloy
Contact Plating
Gold
Electrical Life
1000Cycles
Max Operating Temperature
85°C
Mechanical Life
1000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Number of Positions
1
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TDA
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
ITT TDA01H0SB1R Datasheet
Download the complete datasheet for ITT TDA01H0SB1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

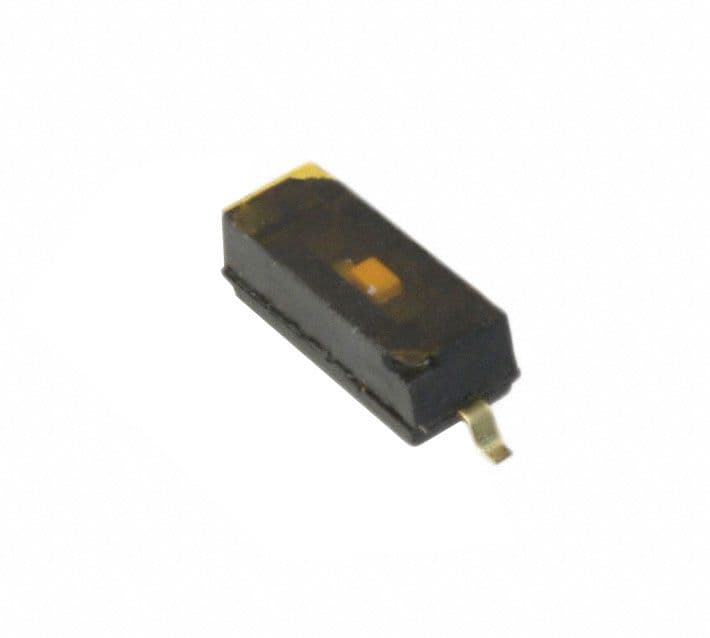

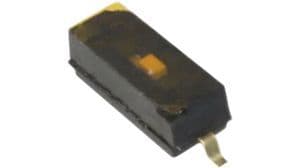

Product Images
