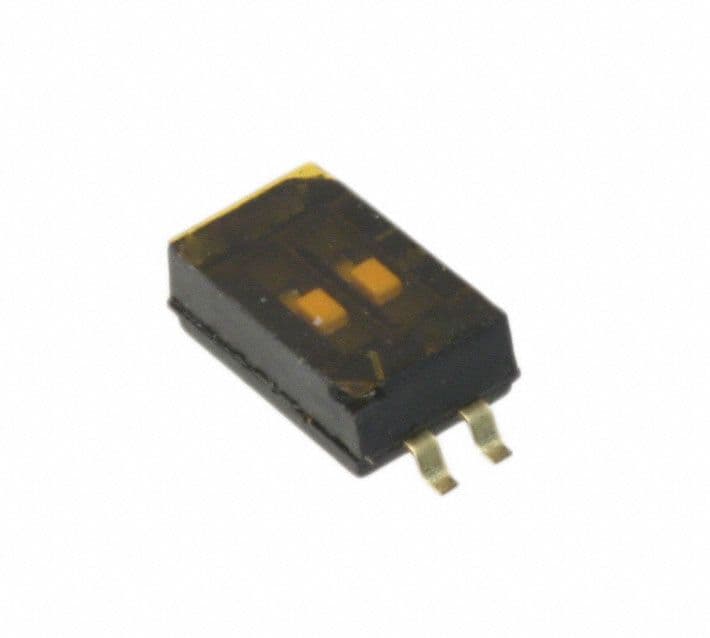

SPST slide DIP switch with a surface mount design and straight orientation. Features a polyphenylene body, copper alloy contacts with gold/nickel plating, and a 25mA max current rating at 24V DC. Offers 2 circuits and 2 positions with a mechanical and electrical life of 1000 cycles. Operates within a temperature range of -40°C to 85°C and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT TDA02H0SB1R technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Electrical Life
1000Cycles
Lead Free
Lead Free
Max Current Rating
25mA
Max Operating Temperature
85°C
Mechanical Life
1000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
2
Number of Positions
2
Orientation
Straight
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TDA
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
Yes
Compliance
RoHS
Compliant
