SPST DIP switch featuring a piano actuator with a 0.75mm polyamide actuator length. This surface mount component offers 2 positions and 2 circuits, with gold/nickel plated copper alloy contacts. Rated for 25mA at 24V DC, it boasts an electrical and mechanical life of 1000 cycles. Constructed with glass and polyphenylene body materials, it operates within a temperature range of -20°C to 85°C.
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT TDP02H1SBD1 technical specifications.
General
Actuator Length
0.75mm
Actuator Material
Polyamide
Actuator Type
PIANO
Body Material
Glass, Polyphenylene
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Current Rating
100mA
Depth
8.12mm
Electrical Life
1000Cycles
Lead Free
Lead Free
Length
3.67mm
Max Current Rating
25mA
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Surface Mount
Number of Circuits
2
Number of Positions
2
Orientation
Straight
Package Quantity
125
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TDP
Terminal Pitch
1.27mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Compliance
RoHS
Compliant
Datasheet
ITT TDP02H1SBD1 Datasheet
Download the complete datasheet for ITT TDP02H1SBD1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

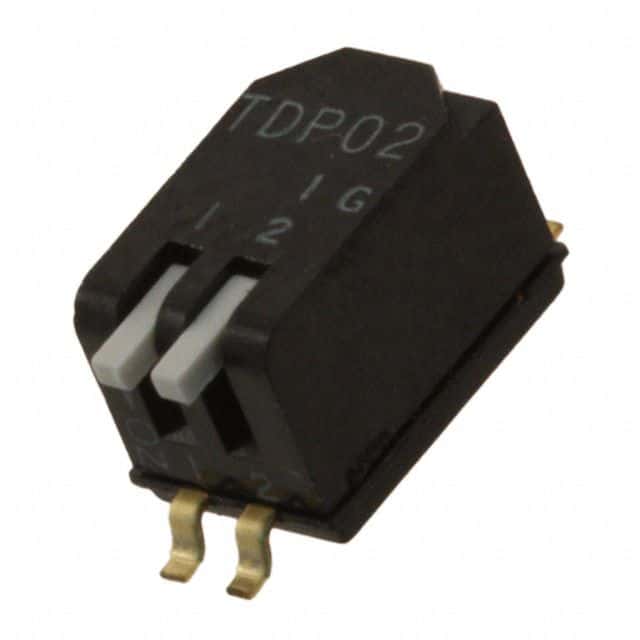

Product Images
