Technical Specifications
ITT TP11LT9CBE technical specifications.
General
Actuator Length
5.46mm
Actuator Material
Polyester, Thermoplastic
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Depth
7.11mm
Electrical Life
60000Cycles
Length
8.13mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole
Orientation
Straight
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
TP
Switch Function
Off-Mom
Termination
PC Pins
Throw Configuration
SPST
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
ITT TP11LT9CBE Datasheet
Download the complete datasheet for ITT TP11LT9CBE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

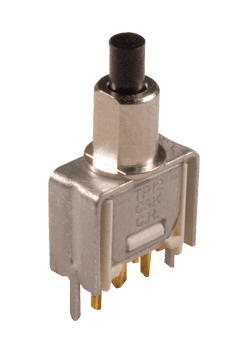

Product Images
