2-position SPDT keylock switch with a 4A contact current rating at 125VAC. Features silver-plated copper contacts, a 90° index angle, and solder termination. Designed for panel mounting with a 17.8mm diameter and 21.97mm depth. UL and CSA approved, UL94 V-0 flammability rated, and RoHS compliant.
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
ITT Y1011U2V203NQ technical specifications.
General
Approvals
UL, CSA
Contact Current Rating
4A
Contact Material
Copper, Silver
Contact Plating
Silver
Current Rating
4A
Depth
21.97mm
Diameter
17.8mm
Electrical Life
10000Cycles
Flammability Rating
UL94 V-0
Index Angle
90°
Lead Free
Lead Free
Length
21.97mm
Material
Stainless Steel
Max Current Rating
4A
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
28V
Mount
Panel
Number of Positions
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
Y
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
ITT Y1011U2V203NQ Datasheet
Download the complete datasheet for ITT Y1011U2V203NQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

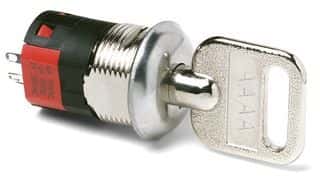

Product Images
