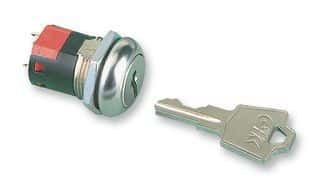

DPDT Keylock Switch with maintained and momentary functions. Features a 4A contact current rating at 125VAC and 28VDC, with silver-plated copper contacts. Offers a 90° index angle and 2 positions, with a straight, solder termination for panel mounting. Electrical life is rated for 10,000 cycles, and the unit is RoHS compliant and lead-free. Approvals include UL and CSA.
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
ITT Y201132C203NQ technical specifications.
General
Approvals
UL, CSA
Contact Current Rating
4A
Contact Material
Copper, Silver
Contact Plating
Silver
Current Rating
4A
Depth
23.16mm
Electrical Life
10000Cycles
Index Angle
90°
Lead Free
Lead Free
Length
23.16mm
Material
Stainless Steel
Max Current Rating
4A
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
28V
Mount
Panel
Number of Positions
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Y
Switch Function
On-On
Termination
Solder
Throw Configuration
DPDT, DP
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
ITT Y201132C203NQ Datasheet
Download the complete datasheet for ITT Y201132C203NQ to view detailed technical specifications.
