Ixys
CS19-12HO1
Silicon Controlled Rectifier, 29A I(T)RMS, 19000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3

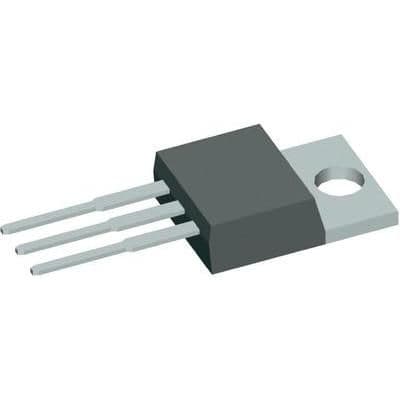

PackageTO-220AB
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys CS19-12HO1 technical specifications.
General
Package/Case
TO-220AB
Height
9.15mm
Hold Current
50mA
Lead Free
Lead Free
Length
10.66mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RMS Current (Irms)
29A
RoHS Compliant
Yes
Weight
0.08113oz
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Ixys CS19-12HO1 Datasheet
Download the complete datasheet for Ixys CS19-12HO1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
