Ixys
DH40-18A
Rectifier Diode, Avalanche, 1 Phase, 1 Element, 40A, 1800V V(RRM), Silicon, TO-247, ROHS COMPLIANT, PLASTIC, TO-247AD, 2 PIN
PackageTO-247AD
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DH40-18A technical specifications.
General
Average Rectified Current
40A
Package/Case
TO-247AD
Forward Current
40A
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.8kV
Max Reverse Current
100uA
Max Reverse Voltage (DC)
1.8kV
Max Surge Current
350A
Mount
Through Hole
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
350A
Radiation Hardening
No
Reverse Recovery Time
300ns
Reverse Recovery Time-Max
100ns
RoHS Compliant
Yes
Series
SONIC-FRD™
Weight
0.229281oz
Compliance
RoHS
Compliant
Datasheet
Ixys DH40-18A Datasheet
Download the complete datasheet for Ixys DH40-18A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

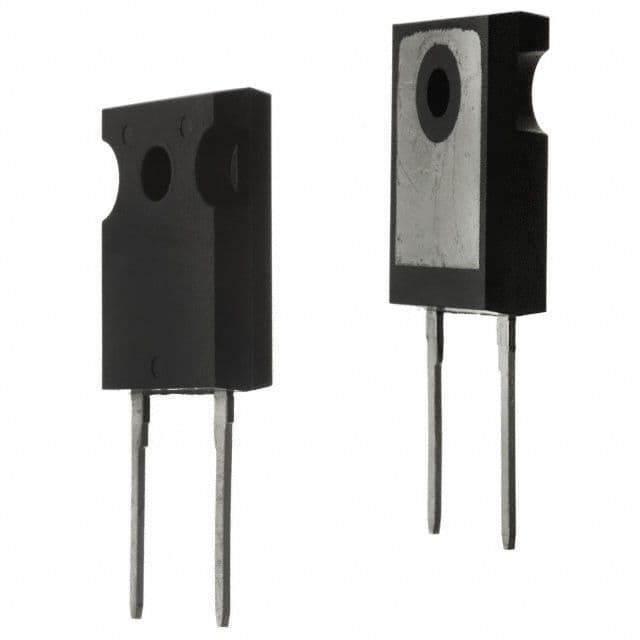

Product Images
