Ixys
DPG15I400PM
Rectifier Diode, 1 Phase, 1 Element, 15A, 400V V(RRM), Silicon, TO-220AC, ROHS COMPLIANT, PLASTIC, TO-220FPAC, 2 PIN
PackageTO-220-2
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DPG15I400PM technical specifications.
General
Average Rectified Current
15A
Package/Case
TO-220-2
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
35W
Max Reverse Leakage Current
100uA
Max Reverse Voltage (DC)
400V
Max Surge Current
190A
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
190A
Radiation Hardening
No
Reverse Recovery Time
45ns
RoHS Compliant
Yes
Series
HiPerFRED™
Weight
0.08113oz
Compliance
RoHS
Compliant
Datasheet
Ixys DPG15I400PM Datasheet
Download the complete datasheet for Ixys DPG15I400PM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

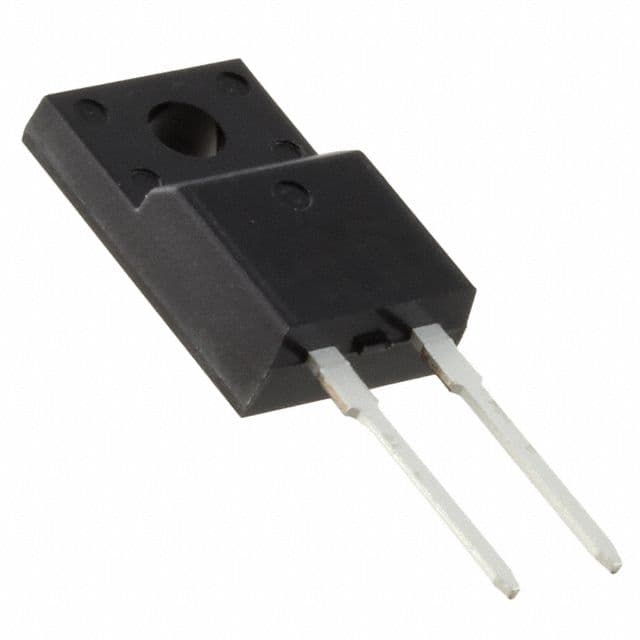

Product Images
