PackageRadial
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Ixys DSA1-16D technical specifications.
General
Average Rectified Current
2.3A
Package/Case
Radial
Diode Type
Avalanche
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Reverse Leakage Current
700uA
Max Reverse Voltage (DC)
1.6kV
Max Surge Current
110A
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Peak Non-Repetitive Surge Current
118A
Polarity
Standard
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Ixys DSA1-16D Datasheet
Download the complete datasheet for Ixys DSA1-16D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

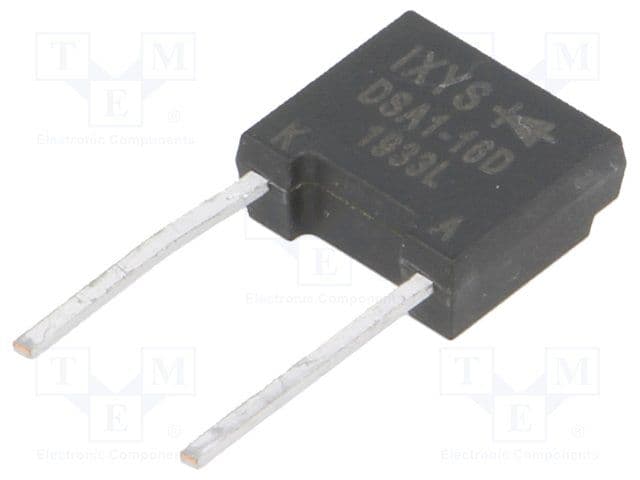

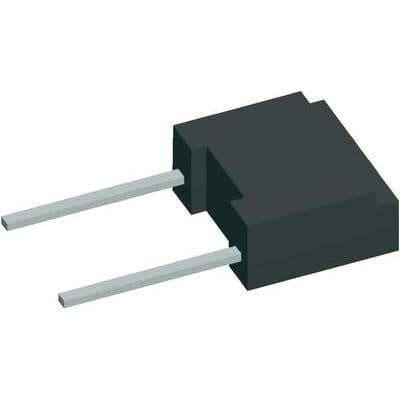

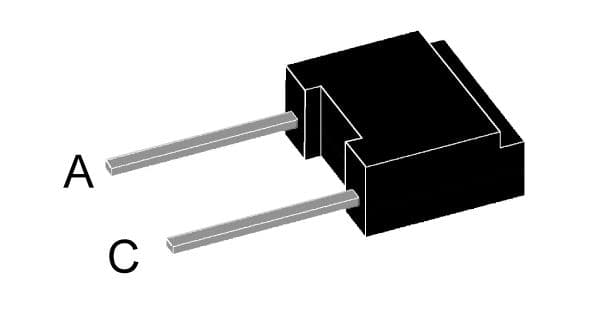

Product Images
