Ixys
DSAI17-18A

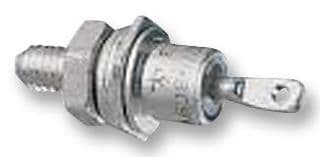

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 25A, 1800V V(RRM), Silicon, DO-203AA, DO-4, 1 PIN
PackageDO-203AA
MountingStud, Chassis
Quick Jump:
Technical Specifications
Ixys DSAI17-18A technical specifications.
General
Average Rectified Current
25A
Package/Case
DO-203AA
Diode Type
Avalanche
Forward Current
25A
Lead Free
Lead Free
Max Operating Temperature
180°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.8kV
Max Reverse Current
4mA
Max Reverse Voltage (DC)
1.8kV
Max Surge Current
370A
Mount
Stud, Chassis
Package Quantity
10
Packaging
Box
Peak Non-Repetitive Surge Current
400A
Reach SVHC Compliant
No
Reverse Voltage
1.8kV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Ixys DSAI17-18A Datasheet
Download the complete datasheet for Ixys DSAI17-18A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
