Ixys
DSAI75-18B
Rectifier Diode, Avalanche, 1 Phase, 1 Element, 110A, 1800V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN
PackageDO-203AB
MountingStud, Chassis
Quick Jump:
Technical Specifications
Ixys DSAI75-18B technical specifications.
General
Average Rectified Current
110A
Package/Case
DO-203AB
Diode Type
Avalanche
Forward Current
110A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
1.5kA
Max Operating Temperature
180°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.8kV
Max Reverse Current
6mA
Max Reverse Voltage (DC)
1.8kV
Max Surge Current
1.4kA
Mount
Stud, Chassis
Package Quantity
10
Packaging
Box
Peak Non-Repetitive Surge Current
1.5kA
Reach SVHC Compliant
No
Reverse Voltage
1.8kV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Ixys DSAI75-18B Datasheet
Download the complete datasheet for Ixys DSAI75-18B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

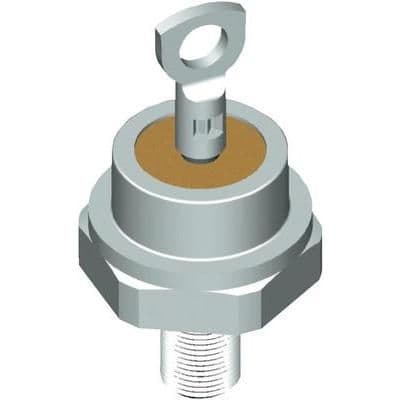

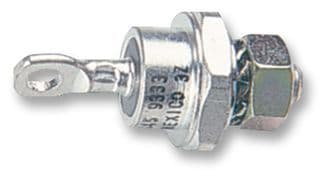

Product Images
