Ixys
DSEC240-04A
Rectifier Diode, Avalanche, 1 Phase, 2 Element, 120A, 400V V(RRM), Silicon, MINIBLOC-4
PackageSOT-227-4
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Ixys DSEC240-04A technical specifications.
General
Average Rectified Current
120A
Package/Case
SOT-227-4
Forward Current
120A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
2mA
Max Reverse Voltage (DC)
400V
Max Surge Current
2kA
Mount
Chassis Mount, Screw
Package Quantity
10
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
2kA
Reverse Recovery Time
30ns
Reverse Voltage
400V
RoHS Compliant
Yes
Series
HiPerFRED™
Compliance
RoHS
Compliant
Datasheet
Ixys DSEC240-04A Datasheet
Download the complete datasheet for Ixys DSEC240-04A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

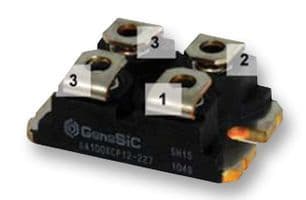

Product Images
