Ixys
DSEC240-06A
Rectifier Diode, Avalanche, 1 Phase, 2 Element, 120A, 600V V(RRM), Silicon, MINIBLOC-4
PackageSOT-227-4
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Ixys DSEC240-06A technical specifications.
General
Average Rectified Current
120A
Package/Case
SOT-227-4
Forward Current
120A
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
2mA
Max Reverse Voltage (DC)
600V
Max Surge Current
2kA
Mount
Chassis Mount, Screw
Package Quantity
10
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
2kA
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
35ns
Reverse Voltage
600V
RoHS Compliant
Yes
Series
HiPerFRED™
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Ixys DSEC240-06A Datasheet
Download the complete datasheet for Ixys DSEC240-06A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

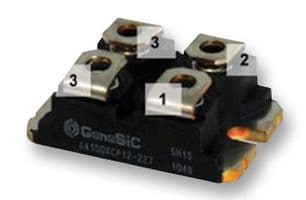

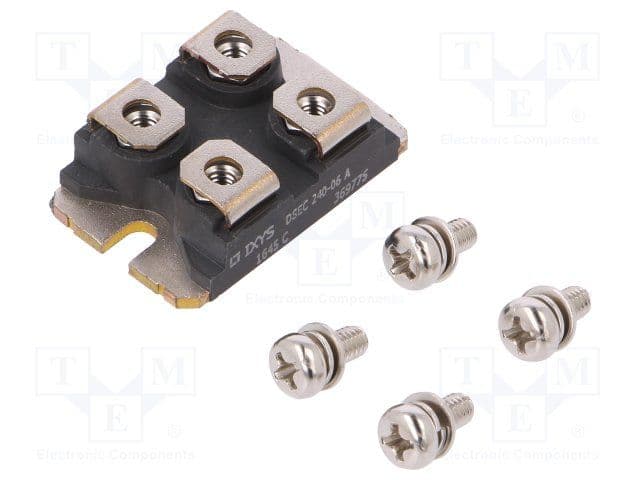

Product Images
