Ixys
DSP25-12A
Rectifier Diode, Avalanche, 1 Phase, 2 Element, 28A, 1200V V(RRM), Silicon, TO-247AD, ROHS COMPLIANT, TO-247AD, 3 PIN
PackageTO-247AD
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DSP25-12A technical specifications.
General
Average Rectified Current
28A
Package/Case
TO-247AD
Forward Current
28A
Height
21.46mm
Length
16.26mm
Max Forward Surge Current (Ifsm)
300A
Max Operating Temperature
180°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
2mA
Max Reverse Voltage (DC)
1.2kV
Max Surge Current
300A
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
330A
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
1.2kV
RoHS Compliant
Yes
DC Rated Voltage
1.2kV
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Ixys DSP25-12A Datasheet
Download the complete datasheet for Ixys DSP25-12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

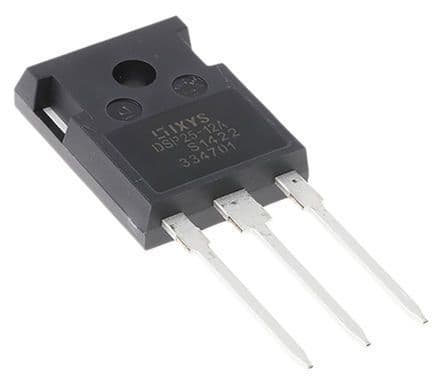

Product Images
