Ixys
DSS25-0045A
Rectifier Diode, Schottky, 1 Phase, 1 Element, 25A, 45V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2
PackageTO-220AC
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DSS25-0045A technical specifications.
General
Average Rectified Current
25A
Package/Case
TO-220AC
Forward Current
25A
Height
9.15mm
Length
10.66mm
Max Forward Surge Current (Ifsm)
400A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
45V
Max Reverse Current
1mA
Max Reverse Leakage Current
1mA
Max Reverse Voltage (DC)
45V
Max Surge Current
400A
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
400A
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.82mm
Compliance
RoHS
Compliant
Datasheet
Ixys DSS25-0045A Datasheet
Download the complete datasheet for Ixys DSS25-0045A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

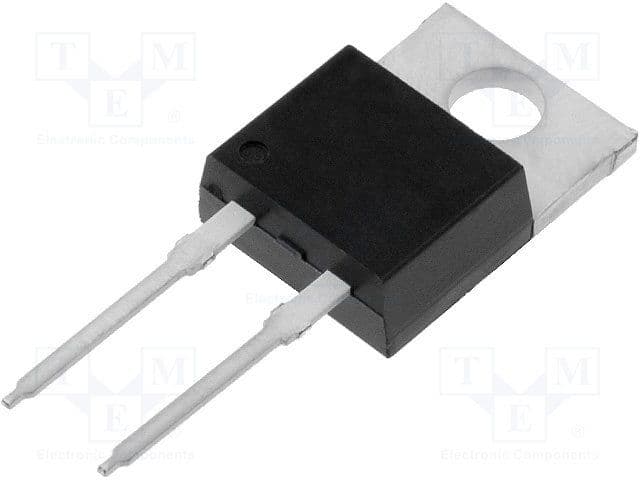

Product Images
