Ixys
DSSK80-006BR
Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, 60V V(RRM), Silicon, ISOPLUS247, 3 PIN
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DSSK80-006BR technical specifications.
General
Average Rectified Current
40A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
20mA
Max Reverse Voltage (DC)
60V
Max Surge Current
600A
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Ixys DSSK80-006BR Datasheet
Download the complete datasheet for Ixys DSSK80-006BR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

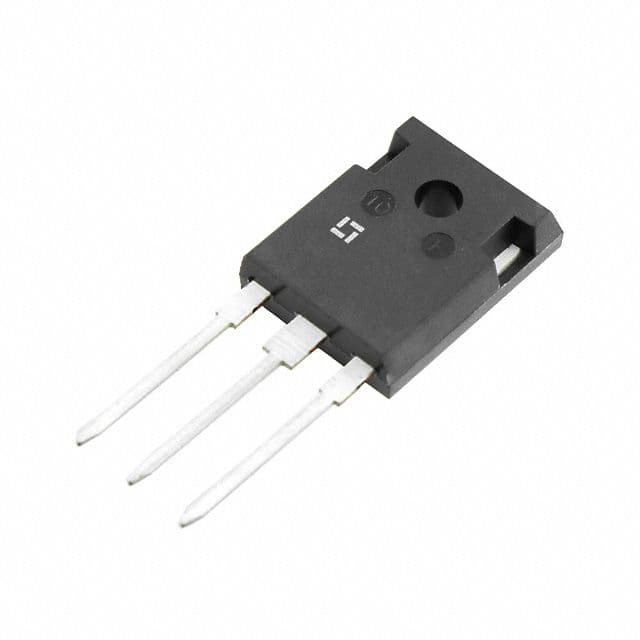

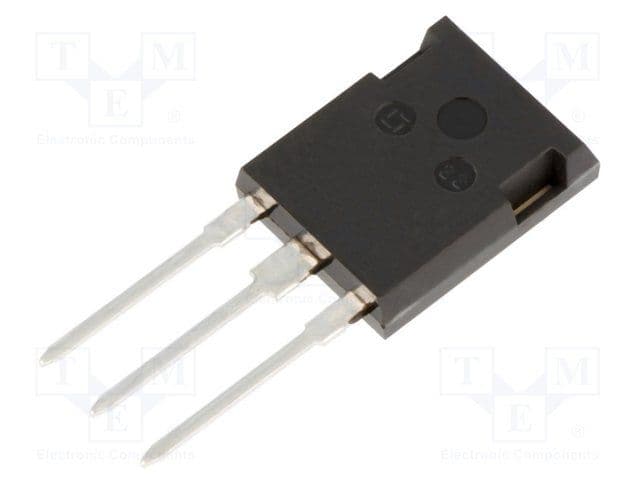

Product Images
