PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys IXDN609CI technical specifications.
General
Package/Case
TO-220-5
Channel Type
Single
Fall Time
15ns
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
9A
Max Supply Voltage
35V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Operating Supply Current
10uA
Output Current
9A
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
60ns
RoHS Compliant
Yes
Turn-Off Delay Time
60ns
Turn-On Delay Time
60ns
Weight
0.105822oz
Compliance
RoHS
Compliant
Datasheet
Ixys IXDN609CI Datasheet
Download the complete datasheet for Ixys IXDN609CI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

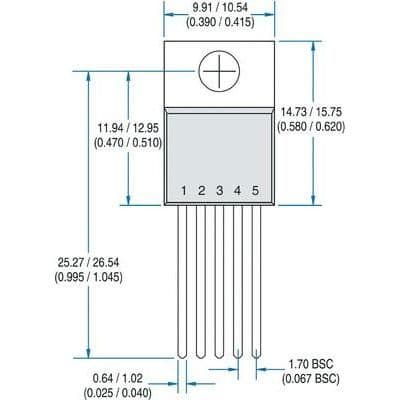

Product Images
