Ixys
IXDR30N120
Insulated Gate Bipolar Transistor, 50A I(C), 1200V V(BR)CES, N-Channel, PLASTIC, ISOPLUS247, 3 PIN
PackageTO-247AD
MountingThrough Hole
Power200W
Quick Jump:
Technical Specifications
Ixys IXDR30N120 technical specifications.
General
Package/Case
TO-247AD
Collector Emitter Breakdown Voltage
1.2kV
Collector Emitter Saturation Voltage
2.4V
Collector Emitter Voltage (VCEO)
1.2kV
Collector-emitter Voltage-Max
2.9V
Input Type
STANDARD
Lead Free
Lead Free
Max Collector Current
50A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
200W
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Power Dissipation
200W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IXDR30N120
Turn-Off Delay Time
500ns
Turn-On Delay Time
100ns
Compliance
RoHS
Compliant
Datasheet
Ixys IXDR30N120 Datasheet
Download the complete datasheet for Ixys IXDR30N120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

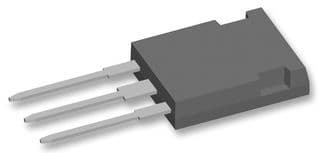

Product Images
