Technical Specifications
Ixys IXFR180N15P technical specifications.
General
| Continuous Drain Current (ID) | 100A |
| Drain to Source Breakdown Voltage | 150V |
| Drain to Source Resistance | 13mR |
| Drain to Source Voltage (Vdss) | 150V |
| Fall Time | 36ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 7nF |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Box |
| Polarity | N-CHANNEL |
| Power Dissipation | 300W |
| Rds On Max | 13mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HiPerFET™, PolarHT™ |
| Threshold Voltage | 5V |
| Turn-Off Delay Time | 150ns |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXFR180N15P Datasheet
Download the complete datasheet for Ixys IXFR180N15P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

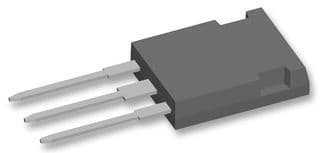

Product Images
