Technical Specifications
Ixys IXFR44N50P technical specifications.
General
| Continuous Drain Current (ID) | 24A |
| Current Rating | 44A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 150mR |
| Drain to Source Voltage (Vdss) | 500V |
| Drain-source On Resistance-Max | 150MR |
| Fall Time | 18ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 5.44nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 208W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 208W |
| Rds On Max | 150mR |
| RoHS Compliant | Yes |
| Series | HiPerFET™, PolarHT™ |
| Turn-Off Delay Time | 70ns |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXFR44N50P Datasheet
Download the complete datasheet for Ixys IXFR44N50P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

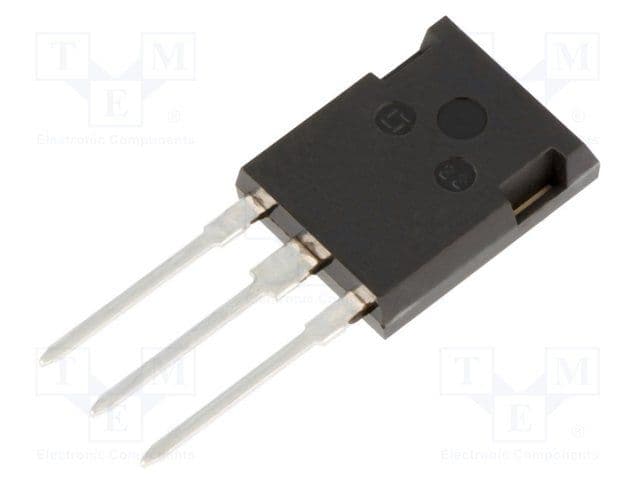

Product Images
