Ixys
IXGR40N60C2
Insulated Gate Bipolar Transistor, 56A I(C), 600V V(BR)CES, N-Channel, ISOPLUS247, 3 PIN
PackageTO-247AD
MountingThrough Hole
Power170W
Quick Jump:
Technical Specifications
Ixys IXGR40N60C2 technical specifications.
General
Package/Case
TO-247AD
Collector Emitter Breakdown Voltage
600V
Collector Emitter Saturation Voltage
2.7V
Collector Emitter Voltage (VCEO)
600V
Collector-emitter Voltage-Max
2.7V
Input Type
STANDARD
Max Collector Current
56A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
170W
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Power Dissipation
170W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HiPerFAST™
Compliance
RoHS
Compliant
Datasheet
Ixys IXGR40N60C2 Datasheet
Download the complete datasheet for Ixys IXGR40N60C2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

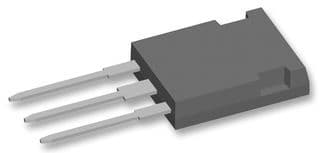

Product Images
