Technical Specifications
Ixys IXTQ18N60P technical specifications.
General
| Continuous Drain Current (ID) | 18A |
| Current Rating | 18A |
| Drain to Source Breakdown Voltage | 600V |
| Drain to Source Resistance | 420mR |
| Drain to Source Voltage (Vdss) | 600V |
| Fall Time | 22ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 2.5nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 360W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 360W |
| Rds On Max | 420mR |
| RoHS Compliant | Yes |
| Series | PolarHV™ |
| Turn-Off Delay Time | 62ns |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXTQ18N60P Datasheet
Download the complete datasheet for Ixys IXTQ18N60P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

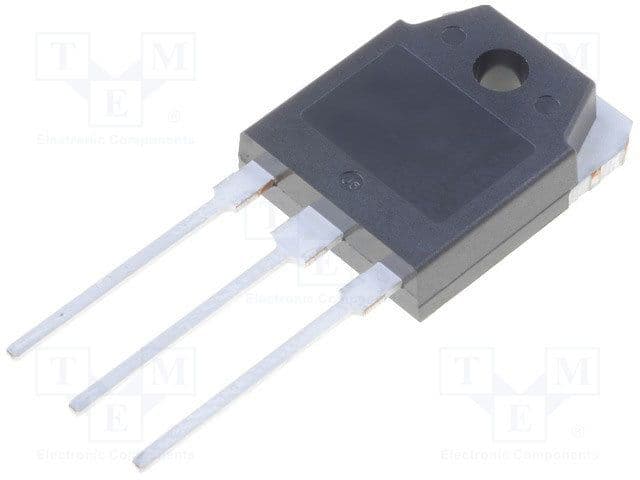

Product Images
