Technical Specifications
Ixys IXTQ22N60P technical specifications.
General
| Continuous Drain Current (ID) | 22A |
| Current Rating | 22A |
| Drain to Source Breakdown Voltage | 600V |
| Drain to Source Resistance | 350mR |
| Drain to Source Voltage (Vdss) | 600V |
| Drain-source On Resistance-Max | 350MR |
| Fall Time | 23ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 3.6nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 400W |
| Rds On Max | 350mR |
| RoHS Compliant | Yes |
| Series | PolarHV™ |
| Turn-Off Delay Time | 60ns |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXTQ22N60P Datasheet
Download the complete datasheet for Ixys IXTQ22N60P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

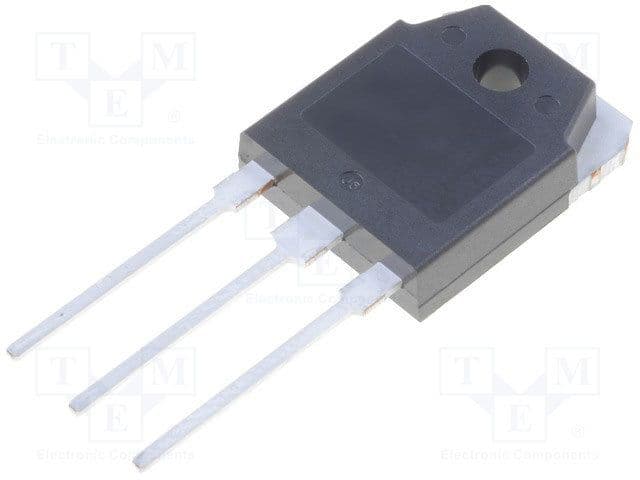

Product Images
