Technical Specifications
Ixys IXTQ75N10P technical specifications.
General
| Continuous Drain Current (ID) | 75A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 25mR |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 45ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 2.25nF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 360W |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 360W |
| Rds On Max | 25mR |
| RoHS Compliant | Yes |
| Series | PolarHT™ |
| Turn-Off Delay Time | 66ns |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXTQ75N10P Datasheet
Download the complete datasheet for Ixys IXTQ75N10P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

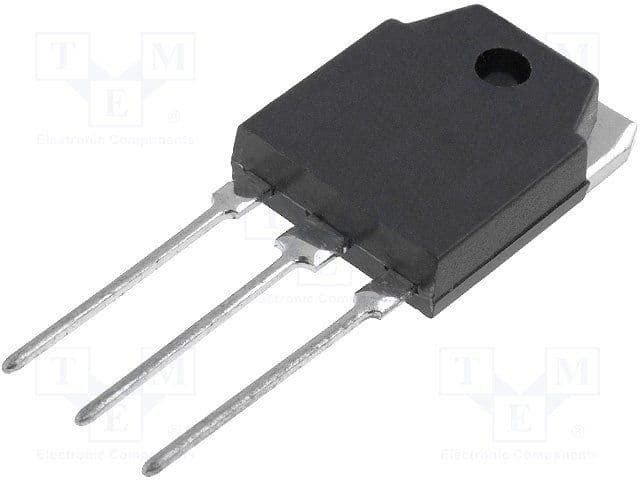

Product Images
