The IXTR48P20P is a high-power MOSFET with a maximum drain to source voltage of 200V and continuous drain current of 30A. It features a maximum power dissipation of 190W and a maximum on-resistance of 93mR. The device is packaged in a 3-pin ISOPLUS247 package and is lead-free and RoHS compliant. It is suitable for high-power applications and can be mounted through a hole.
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys IXTR48P20P technical specifications.
General
| Continuous Drain Current (ID) | 30A |
| Drain to Source Voltage (Vdss) | 200V |
| Input Capacitance | 5.4nF |
| Lead Free | Lead Free |
| Max Power Dissipation | 190W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Rds On Max | 93mR |
| RoHS Compliant | Yes |
| Series | PolarP™ |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXTR48P20P Datasheet
Download the complete datasheet for Ixys IXTR48P20P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

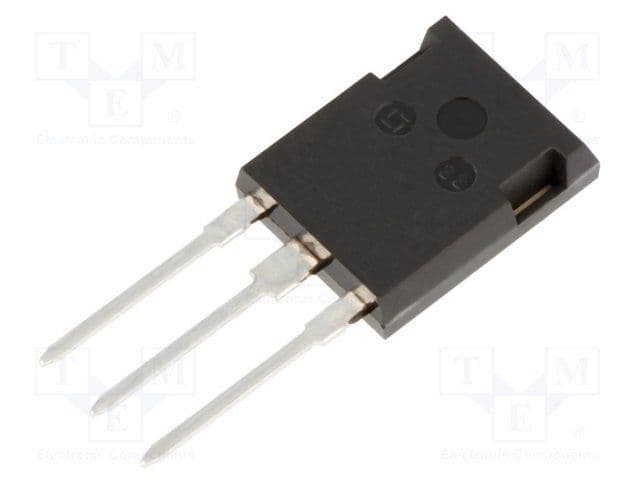

Product Images
