Technical Specifications
Ixys IXTY44N10T technical specifications.
General
| Package/Case | TO-252AA |
| Continuous Drain Current (ID) | 44A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 30mR |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 32ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 1.262nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 130W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 130W |
| Radiation Hardening | No |
| Rds On Max | 30mR |
| RoHS Compliant | Yes |
| Series | TrenchMV™ |
| Turn-Off Delay Time | 36ns |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXTY44N10T Datasheet
Download the complete datasheet for Ixys IXTY44N10T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

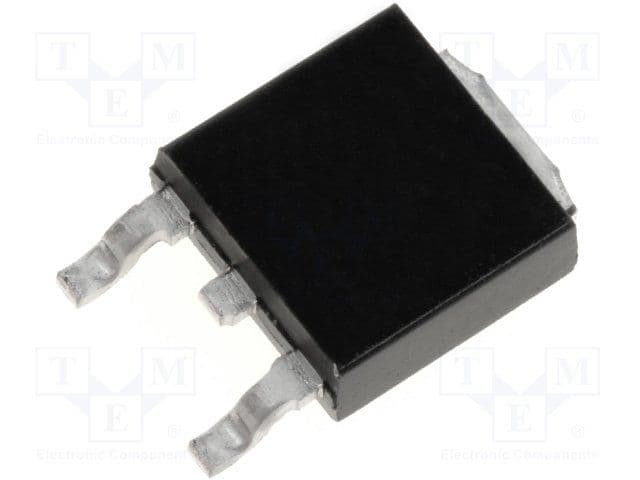

Product Images
