Ixys
LKK47-06C5
Power Field-Effect Transistor, 47A I(D), 600V, 0.045ohm, 2-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, ISOPLUS264, 5 PIN
MountingThrough Hole
PolarityN-CHANNEL
Power480W
Quick Jump:
Technical Specifications
Ixys LKK47-06C5 technical specifications.
General
Continuous Drain Current (ID)
47A
Drain to Source Breakdown Voltage
600V
Drain to Source Resistance
45mR
Drain to Source Voltage (Vdss)
600V
Fall Time
10ns
FET Type
2 N-Channel
Gate to Source Voltage (Vgs)
20V
Input Capacitance
6.8nF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
24
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
480W
Rds On Max
45mR
RoHS Compliant
Yes
Series
CoolMOS™
Turn-Off Delay Time
100ns
Compliance
RoHS
Compliant
Datasheet
Ixys LKK47-06C5 Datasheet
Download the complete datasheet for Ixys LKK47-06C5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

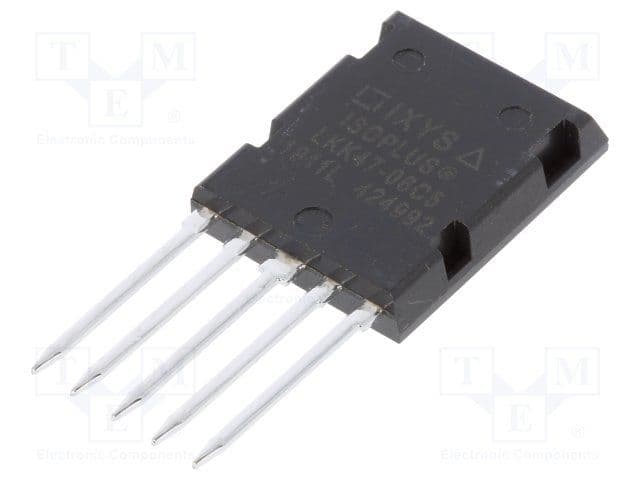

Product Images
