8-bit microcontroller IC featuring 16KB FLASH memory and 2KB RAM. Operates at up to 20MHz with an 8-bit data bus width and eZ8 core architecture. Offers I2C, SPI, IrDA, UART, and USART interfaces, with 46 programmable I/Os. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Encased in a 64-pin LQFP surface mount package, with an operating temperature range of -40°C to 105°C and a supply voltage of 3V to 3.6V.
Frequency20MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys Z8F1602AR020EC technical specifications.
General
Access Time
20us
Package/Case
LQFP
Core Architecture
eZ8
Data Bus Width
8b
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Contains Lead
Max Frequency
20MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
46
Number of Programmable I/O
46
Number of Timers/Counters
64
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
2KB
RoHS Compliant
No
Series
Encore!®
Compliance
RoHS
Not Compliant
Datasheet
Ixys Z8F1602AR020EC Datasheet
Download the complete datasheet for Ixys Z8F1602AR020EC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

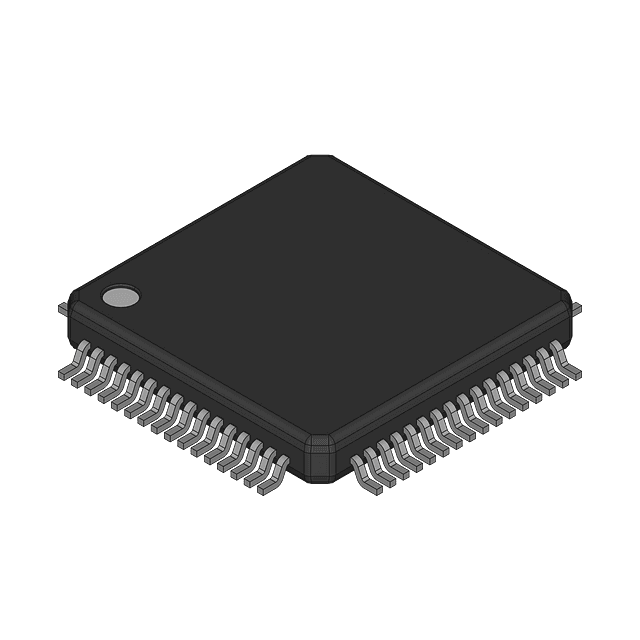

Product Images
