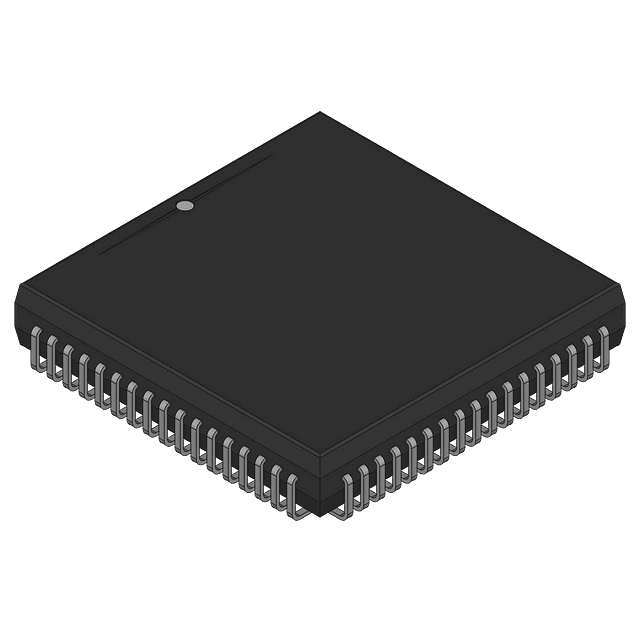

8-bit microcontroller with 16KB FLASH memory and 2KB RAM. Features an eZ8 core architecture, operating at up to 20MHz with an 8-bit data bus. Offers I2C, SPI, IrDA, UART, and USART interfaces, along with 46 programmable I/Os. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Packaged in a 68PLCC surface mount LCC case, with an operating temperature range of 0°C to 70°C and a supply voltage of 3V to 3.6V.
Frequency20MHz
PackageLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys Z8F1602VS020SC technical specifications.
General
Access Time
20us
Package/Case
LCC
Core Architecture
eZ8
Data Bus Width
8b
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Contains Lead
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
46
Number of Programmable I/O
46
Number of Timers/Counters
64
Oscillator Type
Internal
Package Quantity
20
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
2KB
RoHS Compliant
No
Series
Encore!®
Compliance
RoHS
Not Compliant
Datasheet
Ixys Z8F1602VS020SC Datasheet
Download the complete datasheet for Ixys Z8F1602VS020SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
