General purpose operational amplifier IC featuring a single circuit in an 8-pin SOIC package. Boasts a 10MHz gain bandwidth product and a 13V/µs slew rate, with a voltage gain of 100dB. Operates from a dual supply voltage range of 3V to 22V, drawing 4mA typical supply current. Offers a 70dB common mode rejection ratio and a maximum input offset voltage of 4mV. This surface mount component is lead-free and RoHS compliant.
PackageSOIC
Current8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Japan Radio Company NJM5534M technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
10MHz
Input Bias Current
500nA
Input Offset Voltage (Vos)
500uV
Input Offset Voltage-Max
4mV
Lead Free
Lead Free
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
3V
Max Operating Temperature
75°C
Min Operating Temperature
-20°C
Max Supply Voltage
22V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Current
4mA
Package Quantity
100
Packaging
Rail/Tube
RoHS Compliant
Yes
Slew Rate
13V/µs
Slew Rate-Nom
13V/µs
Supply Current
8mA
Technology
BIPOLAR
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Japan Radio Company NJM5534M Datasheet
Download the complete datasheet for Japan Radio Company NJM5534M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

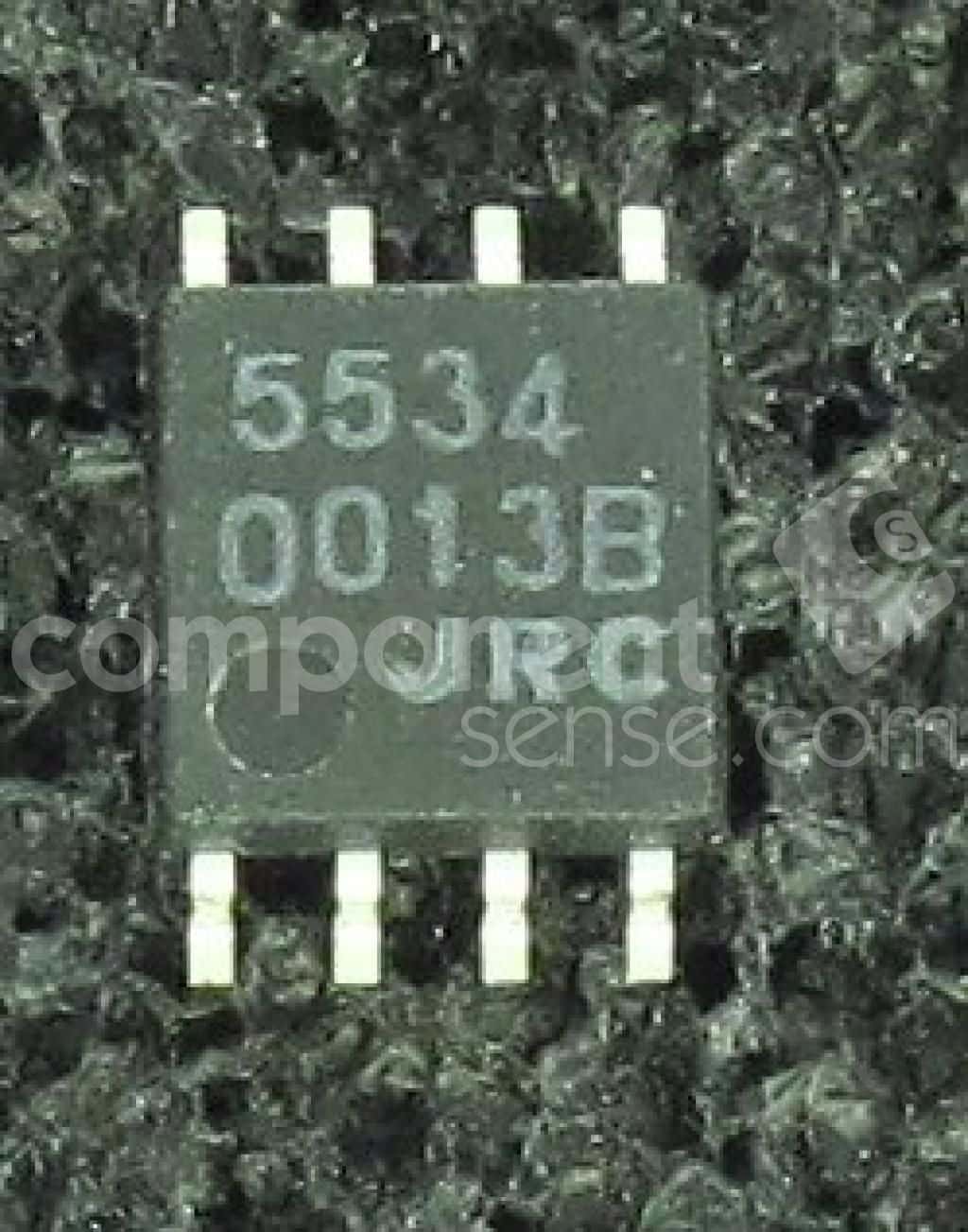

Product Images
